Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance
| Bore diameter | 65 mm |
| Outside diameter | 100 mm |
| Width | 11 mm |
| Basic dynamic load rating | 22.5 kN |
| Basic static load rating | 19.6 kN |
| Reference speed | 14 000 r/min |
| Limiting speed | 9 000 r/min |
| SKF performance class | SKF Explorer |
| Filling slots | Without |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Matched arrangement | No |
| Radial internal clearance | C3 |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Sealing type | |
| Lubricant | None |
| Relubrication feature | Without |
| Candidate for remanufacturing | |
| Product net weight | 0.292 kg |
| eClass code | 23-05-08-01 |
| UNSPSC code | 31171504 |

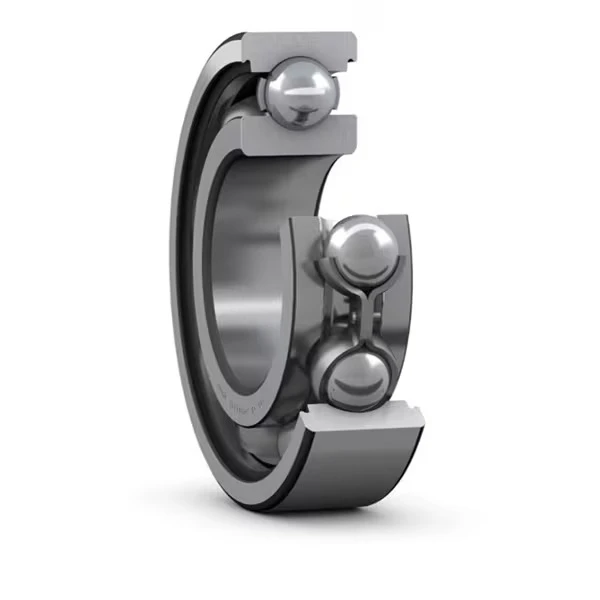

| image | Image may differ from product. See technical specification for details. |
